Follow Up of Bent Lamination

Hey folks,

So this post will continue the talk about the bent lamination process I used to create the rams horn style handle for the bicycle.  Like you all read in the previous post the mold has been created, now it's time to  show you all how to cut the thin strips to create the laminations.  The first thing I did was create a jig that will allow me to cut a constant 1/8 inch strip of material.

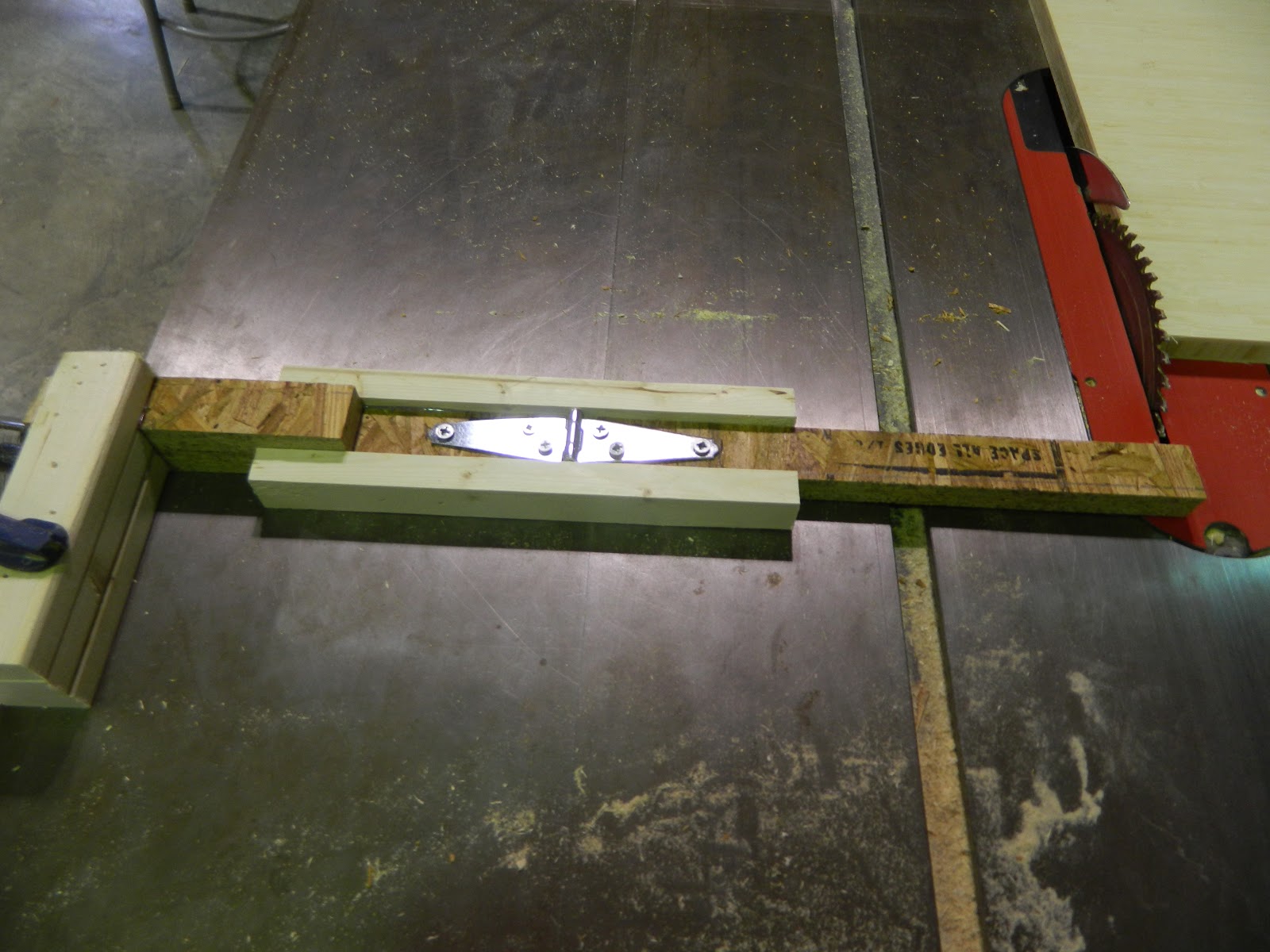

So here is the jig, its pretty neat because it clamps to the table of the table saw, and then moves out of the way when you want to make your cut.  Again, like I said the jig uses the table saw fence to allow a material to be cut into a consistent strip to allow bending.

As you can see in the first picture, the jig fold out of the way just like I said, and makes a consistent strip of 1/8.  The next process is the actual process of bending the material. I couldn't take pictures of the process because it involves gluing, but I will put a link to show the process below.

Bent Lamination Process
-Nick

So Much To Talk About

Hey All,

So I know that I have really been slacking with the whole posting on the blog, but this might be the best post yet! Gotta keep you reading, hahahaha =).  Anyways, like the title says there really is so much to talk about!!!  A couple post back I talked about having all my bike parts in, well one package got lost on campus, which caused work on the bike to basically come to a stand still, but don't worry, after a lot of e-mailing and communicating with individuals on campus, THE PACKAGE WAS FOUND!!!  But lets talk about the other stuff that has happened since the last post, 1. Gluing test with the marine grade epoxy 2. Plyboo handle bar build (really cool process)

First the gluing test, below you will see a picture of the epoxy that I am using.  I have to say the guys at AeroMarine have a really cool product.  The resin to hardener is 2 to 1 which was pretty strange, most of the stuff I use is usually a 1 to 1 ratio.

The next picture is just a couple of scape pieces of Plyboo that I epoxied together, the epoxy dried clear just as the bottle said, again a wonderful product, but very messy!!

The next topic that I will talk about deals with the handle bars, and the process of bent laminations.  I have to say these are going to be way cool!  So the first step in any bent lamination process is building the mold, the pictures below deal with the drawing out of the mold on a scrap piece of plywood that was in one of the scrape tubes in the shop.

Like I said I began with drawing the mold out, to figure out how wide the handle bars needed to be I acted like I was holding handle bars in front of me, and I had someone measure the distance between my knuckles to get the inside dimension of the bars.  To get the curve of the bars I used the closest thing to me that was round, I used a roll of wire, and placed it on the spot where the two line intersected and drew the curve.

As you can see I marked on the cardboard so that I would get the same curve on the other side, making exactly symmetrical handle bars.  Next comes the step dealing with building of the mold.  I cut a scrape 2 by 4 I had saved from an old pallet I took apart into 2 to 3 inch blocks. Then wrapped them in plastic so that the then lamination wouldn't stick.

You then drill holes into the plywood drawing to attach the blocks to hold the lamination during the gluing process.

You then counter sink the holes so that the screws holding the blocks set flush against the bottom of the plywood mold.

I then used a hot glue gun to hold down the blocks while screwing them to the plywood mold.

I also used a clamp to hold down the blocks, and finally the last picture is the completed mold. The bent lamination process will continue in the next post!

-Nick

Rear Stay and Dropouts

Hi all,

Over the past couple days I have been working on the rear stays and dropouts.  I have also been testing the Plyboo to see if it was strong enough to hold the weight of a person while riding the bicycle.

Just making a full scale mockup

So I then cut out the two pieces from the cardboard template, and started to figure out how the long each piece needs to be

3 dimensional mock up

The picture below is just the rear drop outs taped together.

So that is where the bike is now, just gotta catch up on the is blogging!! Stay tuned to see what will happen next.

-Nick
